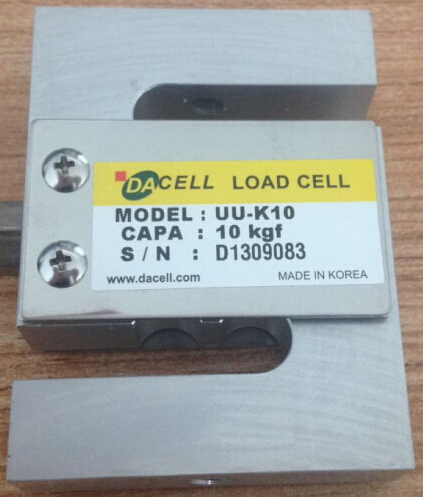

韩国Dacell称重传感器|UU-K2称重传感器
UU
|
Compact size
These are extremely accurate and compact Tension/Compression load cell.
|
|
|
|
|
|
|
|
|
|
Specifications
|
Accuracy
|
|
Rated capacity(R.C.)
|
2kg, 5kg, 10kgf, 20kgf, 50kgf, 100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf
|
|
Rated output(R.O.)
|
2.0mV/V±1%(2kgf, 5kgf:1.5mV/V±1%)
|
|
Nonlinearity
|
0.03% of R.O.
|
|
Hysteresis
|
0.03% of R.O.
|
|
Repeatability
|
0.03% of R.O.
|
|
Zero balance
|
±2% of R.O.
|
|
Temperature effect, on rated output
|
0.05% of LOAD/10℃
|
|
Temperature effect, on zero balance
|
0.1% of R.O./10℃
|
|
Temperature range, compensated
|
-10~60℃
|
|
Temperature range, safe
|
-20~80℃
|
|
Terminal resistance input
|
350 ±50Ω
|
|
Terminal resistance output
|
350 ±2Ω
|
|
Insulation resistance bridge/case
|
2000MΩ
|
|
Excitation recommended
|
10V
|
|
Safe overload
|
150% R.C
|
|
Cable length
|
Φ5mm 4core,3m
|
|
|
|
|
|
Capacity
|
A
|
B
|
C
|
D
|
E
|
G
|
Weight(kg)
|
|
2kgf (19.61N)
|
60
|
50
|
13
|
16
|
10
|
M6x1
|
0.4
|
|
5kgf (49.03N)
|
60
|
50
|
13
|
16
|
10
|
M6x1
|
|
10kgf (98.07N)
|
70
|
52
|
13
|
18
|
13
|
M6x1
|
|
20kgf (196.1N)
|
70
|
52
|
13
|
18
|
13
|
M6x1
|
|
50kgf (490.3N)
|
70
|
52
|
18
|
24
|
13
|
M12x1.75
|
|
100kgf (980.7N)
|
70
|
52
|
18
|
24
|
13
|
M12x1.75
|
|
200kgf (1.961KN)
|
70
|
52
|
18
|
24
|
13
|
M12x1.75
|
|
500kgf (4.903KN)
|
70
|
62
|
22
|
25
|
15
|
M12x1.75
|
0.8
|
|
1tf (9.807KN)
|
70
|
62
|
22
|
25
|
15
|
M12x1.75
|
|
2tf (19.61KN)
|
96
|
84
|
30
|
35
|
21
|
M20x1.5
|
2
|
|
3tf (29.42KN)
|
120
|
96
|
35
|
41
|
30
|
M24x2
|
3
|
|
5tf (49.03KN)
|
120
|
96
|
40
|
44
|
30
|
M24x2
|
|
10tf (98.07KN)
|
165
|
140
|
60
|
66
|
46
|
M39x2
|
8.5
|
|
|
|
|
|
|
|
|
|
|
