Specifications
|
Accuracy
|
|
DN100
|

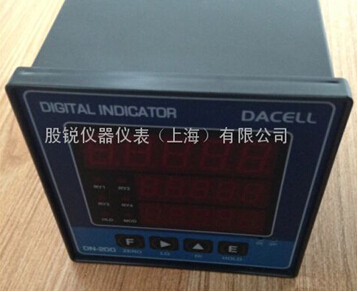

DN200
|
|
Application sensor
|
Strain guage sensors
|
Sensor authorized voltage
(the number of Loadcell connection)
|
DC 5V, Loadcell(350?) available 4
|
|
Zero adjustment range
|
100%F·S (Auto Zero)
|
|
Input signal
|
0.5~3mV/V
|
|
Display
|
-19999~+99999
|
|
Character height
|
7 Segment 14mm & 10mm
|
|
Decimal point
|
Random setting available
|
|
A/D converter
|
16bit 5000 times/sec
|
24bit 1000 times/sec
|
|
D/A converter
|
16bit 1000 times/sec
|
|
Relay output
|
Contact capacity : AC125V 0.,DC24V 1A
|
|
Relay life time : more than 5,000,000 times
|
|
Zero variation
|
Within 0.5μV/℃
|
|
Sensitivity variation
|
Within 0.01%/℃
|
|
Voltage output
|
DC 0 ~ 10V (Option 4~20mA)
|
|
Usage temperature range
|
-10℃ ~ 60℃
|
|
Humidity
|
Less than 80% RH (no dew condensation)
|
|
Power source used
|
AC 85 ~ 265V 50/60Hz
|
|
Weight
|
1000g
|
|
Option
|
OP-01 : 4~20mA
|
|
OP-02 : RS232C serial interface
|
|
OP-03 : RS485 Multi drop interface
|
|
OP-04 : RS422A serial interface
|
|
OP-05 : BCD paralle out
|
